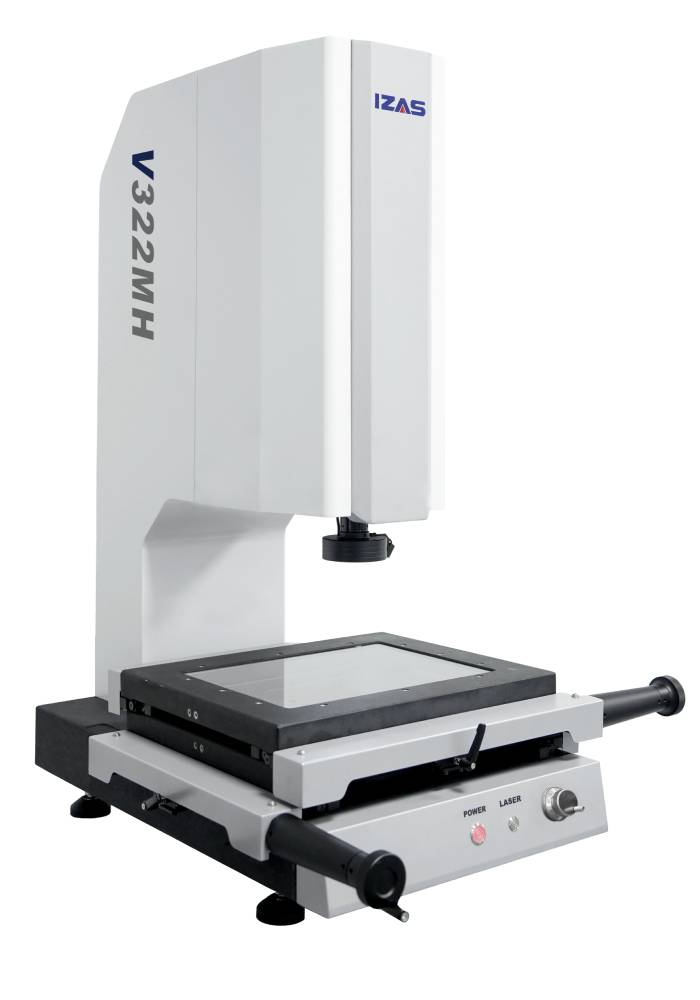

MH-Series Semi-Automatic Video Measuring Machine
The MH-series semi-automatic video measuring machine adopts a design with manual control for the X and Y axes and electric control for the Z axis. It is simple and easy to operate. The combination of flexible manual control and electric lifting function makes it particularly suitable for precision measurement of small-batch and multi-variety products. The MH-series not only improves measurement efficiency but also reduces operational difficulty, serving as an ideal choice for small-scale production and high-precision measurement scenarios.
Product Features
-
Adopts professional industrial design with an elegant, concise, stable and innovative appearance;
-
Equipped with a high-definition global-color CMOS image sensor with global exposure;
-
Precision toothless nut transmission achieves zero backlash, smooth movement and fast positioning;
-
Full granite structure optimized by FEA (Finite Element Analysis) ensures structural stability and long-term reliability;
-
Independent movement of X/Y-axis handwheels and platform without mutual interference, ensuring stability and operational safety;
-
Built-in laser pointer for convenient workpiece positioning;
-
Self-developed iVision video measurement software with powerful functions and simple operation;
-
Three-axis linear encoders are equipped. The electrically driven Z-axis supports auto-focusing to measure height, depth, flatness and other parameters;
-
Comes with a dedicated manual pulse generator for fine Z-axis focusing adjustment.
Software Features
-
Intuitive and user-friendly interface; one-click access to frequently used functions including measurement programming and operation control;
-
Supports the combined application of multiple sensors, including contact star probes, 3D line-scan lasers, point spectral confocal displacement sensors and line spectral confocal displacement sensors;
-
Built-in auto-focus, auto edge-finding and auto lighting adjustment functions. Combined with platform motion control, it realizes high-volume rapid measurement for products with identical specifications;
-
Supports auxiliary functions such as fast measurement via CAD file import, automatic code scanning and map navigation;
-
Enables measurement report export in multiple formats including Excel, PDF, Word and TXT, with a wide selection of configurable parameters;
-
Equipped with a comprehensive temperature compensation system, supporting two compensation modes: Temperature Mode and Proportion Mode, enabling rapid accuracy correction for diverse application scenarios.
