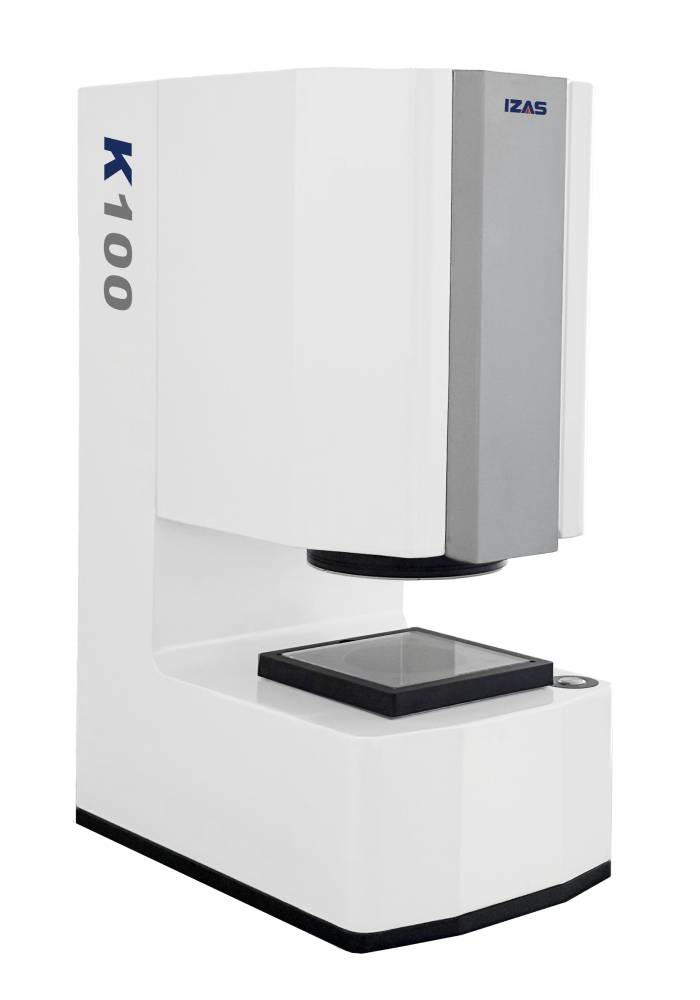

K-Series One-Click Fixed Platform Flash Measuring Machine

Product Features

• Workpieces can be placed randomly; the system automatically identifies workpiece features and measures multiple workpieces of the same batch in one single scan;
• Integrated compact structure for flexible and convenient deployment;
• Equipped with a 20-megapixel high-definition industrial digital camera for clear visualization of tiny features;
• Wide-field dual telecentric lens provides a viewing range approximately 50 times that of traditional video measuring machines, capable of measuring more than 100 dimensions in a single field of view;
• Supports multiple programmable combined light sources, including annular surface light, telecentric parallel bottom light and adjustable lifting LED cold light;
• Dedicated O-ring measurement module enables one-click automatic flash measurement of inner diameter, outer diameter, wall thickness and other core parameters without programming;
• Self-developed iVision video measurement software with powerful functions and user-friendly operation;
• Measured data is readable and processable, facilitating data collection management and SPC system establishment.

Software Features

• Intuitive and user-friendly interface; one-click access to frequently used functions including measurement programming and operation control;
• Supports the combined application of multiple sensors, including contact star probes, 3D line-scan lasers, point spectral confocal displacement sensors and line spectral confocal displacement sensors;
• Built-in auto-focus, auto edge-finding and auto lighting adjustment functions. Combined with platform motion control, it realizes high-volume rapid measurement for products with identical specifications;
• Supports auxiliary functions such as fast measurement via CAD file import, automatic code scanning and map navigation;
• Enables measurement report export in multiple formats including Excel, PDF, Word and TXT, with a wide selection of configurable parameters;
• Equipped with a comprehensive temperature compensation system, supporting two compensation modes: Temperature Mode and Proportion Mode, enabling rapid accuracy correction for diverse application scenarios.
