EASY-Series Tool Presetter

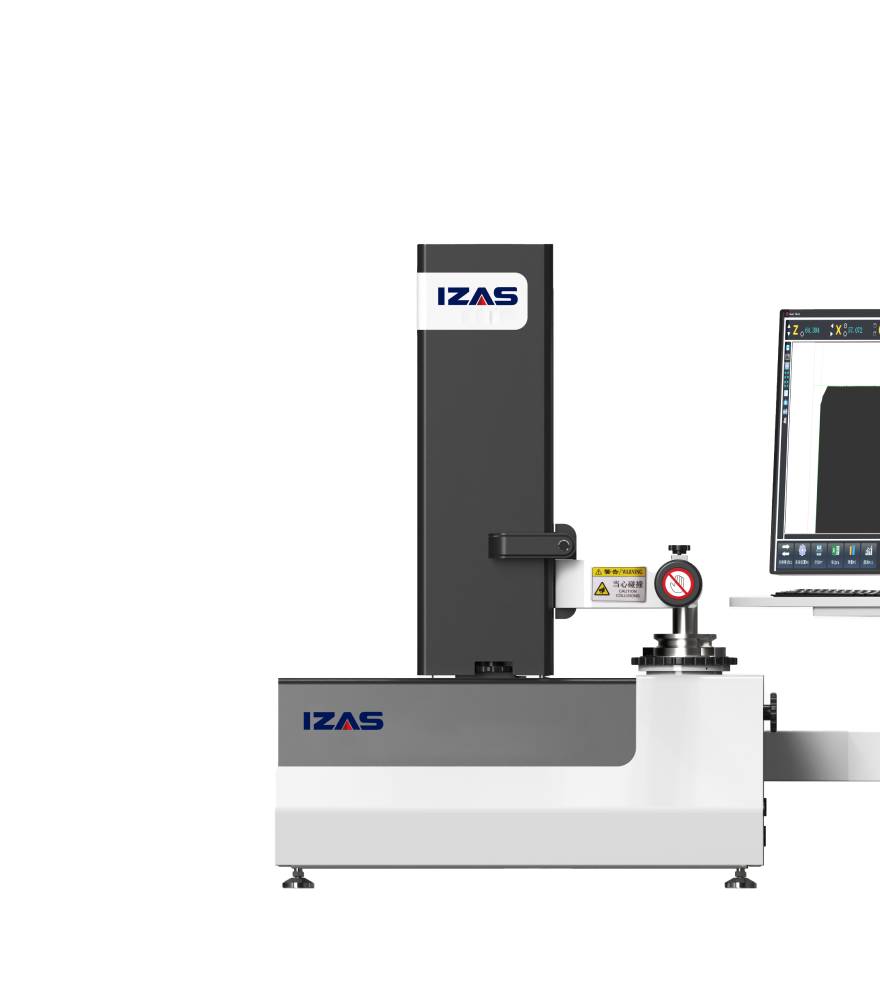

The EASY-series tool presetter is mainly used for measuring the precise coordinate positions of cutting edges on boring and milling tools for CNC machine tools, machining centers and flexible manufacturing cells. It is also capable of inspecting tool tip angles, rounded corners and cutting edge conditions.
Product Features
-
Automatic measurement eliminates manual operation errors, ensuring simpler operation and higher measuring accuracy;
-
X-axis and Z-axis adopt THK guide rails to guarantee excellent verticality and service life, providing a stable foundation for precision measurement;
-
The machine can automatically move to the target position with one mouse click;
-
Integrated positioning measurement, preset measurement and functional measurement support detection of a wide variety of cutting tools;
-
Fully automatic measuring process with automatic data export after measurement completion;
-
High-precision linear encoders ensure micron-level measuring accuracy for the X and Z axes;
-
Dustproof electrical structure ensures stable electrical operation;
-
Self-developed professional software with an intuitive and easy-to-learn interface. It supports various tool parameter calculation and data analysis, equipped with a 24-inch display;
-
High-precision spindle with runout tolerance less than 0.001mm, realizing pneumatic clamping, releasing and jacking functions;
-
Optional high-resolution optical lens and digital camera deliver high-quality imaging for measurement;
-
Dual-lens measurement enables tool observation and comprehensive detection of end face dimensions, rake angle, relief angle, cutting depth, edge height and land width.
Model Specification Comparison Table
|
Parameter Item
|
EASY420
|
EASY620
|
|---|---|---|
|
Field of View (mm)
|
7.3×4.0
|
7.3×4.9
|
|
Maximum Tool Diameter (mm)
|
420
|
420
|
|
Maximum Z-Axis (Height) Stroke (mm)
|
420
|
600
|
|
X-Axis Measuring Range (mm)
|
210
|
210
|
