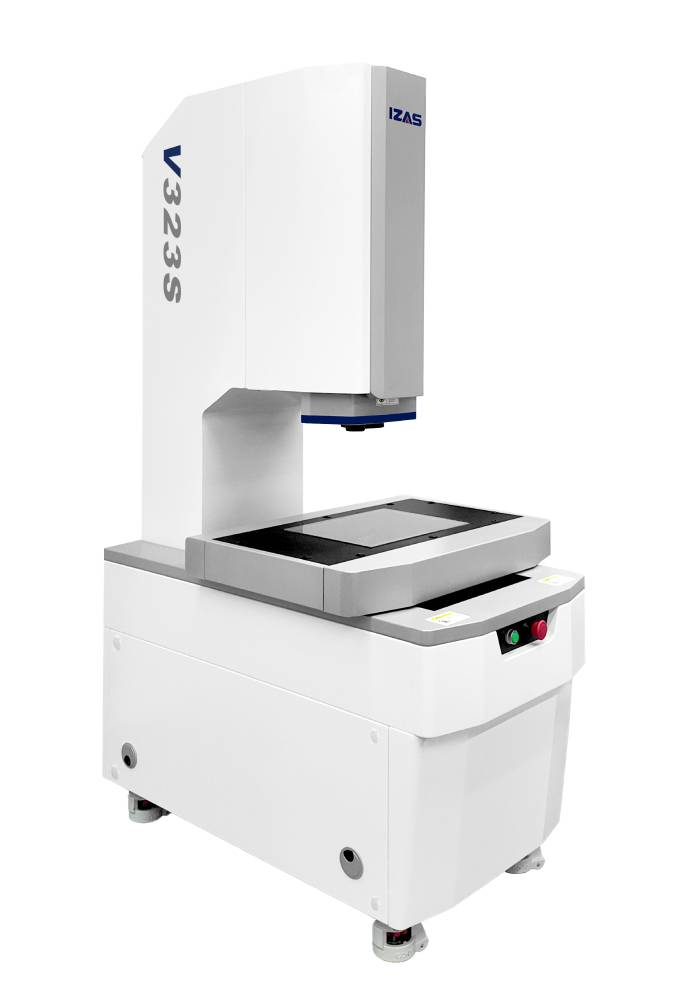

S-Series High-Precision Video Measuring Machine

Product Features

• Industry-leading measuring accuracy of 1.5μm, meeting stringent industrial precision measurement requirements;
• Equipped with an auto-zoom lens with high resolution and high zoom ratio, achieving a maximum optical magnification of 16x and a maximum video magnification of approximately 920x;
• High-precision auto-focusing completed within 2 seconds, greatly improving measurement efficiency;
• High-definition global color CMOS image sensor with a wide field of view;
• Intelligent automatic image matching enables fast and accurate sampling without manual operation, significantly optimizing programming efficiency and operating speed;
• Intelligent image edge-finding technology supports customizable edge detection directions and flexible parameter configuration. It effectively eliminates interference from stray points and burrs to ensure precise point acquisition;
• The main body adopts a granite structure optimized by FEA (Finite Element Analysis), ensuring long-term structural stability and reliability;
• Independently programmable LED top light, parallel contour light and coaxial light with 256-level adjustable brightness;
• High-resolution linear encoder with a resolution of 0.1μm;
• The combination of three-axis precision guide rails, three-axis servo motors and CNC servo control system delivers excellent positioning accuracy, with a maximum acceleration of up to 1000mm/s²;
• Self-developed iVision video measurement software: powerful, user-friendly and easy to operate. It is compatible with various measuring sensors and supports connection with MES systems and robots.

Software Features

• Intuitive and user-friendly interface; one-click access to frequently used functions such as measurement programming and operation control;
• Supports the combined application of multiple sensors, including contact star probes, 3D line-scan lasers, point spectral confocal displacement sensors and line spectral confocal displacement sensors;
• Built-in auto-focus, auto edge-finding and auto lighting adjustment functions. Combined with platform motion control, it realizes high-volume rapid measurement for products with identical specifications;
• Supports auxiliary functions such as fast measurement via CAD file import, automatic code scanning and map navigation;
• Enables measurement report export in multiple formats including Excel, PDF, Word and TXT, with a wide selection of configurable parameters;
• Equipped with a comprehensive temperature compensation system, supporting two compensation modes: Temperature Mode and Proportion Mode, enabling rapid accuracy correction for diverse application scenarios.
